AGC’s glass ceramic package substrates for semiconductor lasers and technologies

AGC’s ceramics packaging substrates

AGC developed a glass ceramics hybrid package called GCHP™ as a new glass-ceramic hybrid package substrate for high-power LED chips by using low-temperature co-fired ceramics (LTCC) technology, and launched it on the market in 2010. In an LED chip with lower power consumption, resin package substrates have shown sufficient durability. However, as the output increases, the resin deteriorates more and more. For that reason, ceramic materials have begun attracting attention. GCHP™ has come to be used in a wider range of areas in recent years, with the increase in the use of high-power LDs and SMDs.

GCHP™（Glass Ceramics Hybrid Package）

Product overview and features

GCHP™ is a glass-ceramic composite that consists of glass frit (glass fine powder) and a ceramic filler. Having unique characteristics both as glass and as ceramic, GCHP™ is a result of the know-how AGC has accumulated over many years and it offers a variety of features that other ceramic substrates do not have.

Product information
产品详细信息

High heat releasing for high-power applications

Heat releasing is a very important factor for high-power LDs to prevent laser beams from becoming unstable when they heat up. LTCC substrates themselves generally have low heat conductivity, but GCHP™ can have an Ag (silver) block in it, and the Ag block has high heat conductivity. That is the advantage of GCHP™ substrates. This heat sink structure gives a high heat releasing performance.
When making substrates using Al2O3 (alumina), a commonly used substrate material, they must be fired at a high temperature. So, it is impossible to use conductor materials having high thermal conductivity, such as Cu (copper) and Ag (silver), and this makes it impossible to achieve high heat releasing. GCHP™ uses Ag and can effectively release heat.

GCHP™ substrates can use an Ag heat sink and can take advantage of the high thermal conductivity of Ag. The graph compares the thermal conductivity of GCHP™ substrates with that of HTCC substrates, such as those made of Al2O3 (alumina) and AlN (aluminum nitride), as well as the thermal conductivity of W (tungsten) used as the conductor of HTCC substrates. As shown in the graph, the use of Ag (silver) enables GCHP™ to achieve a high heat releasing performance.

High reflectivity in a wide range of wavelengths

Light has the property of reflecting off at interfaces of materials with different refractive indices. Because GCHP™ is a hybrid material of glass and ceramics, reflection is repeated at interfaces between glass and ceramics, and that is why it has high reflection characteristics. We have developed a glass composition that can incorporate a large amount of ceramic filler while maintaining the glass network structure, and this has made it possible to manufacture highly reflective package substrates.

The level of reflectivity a substrate must have depends on the design of the optical sensing device. AGC provides both white and black GCHP™ substrates: the former has high reflectivity, while the latter has low reflectivity.

High reliability ensured by glass composition

Crack
suppression		 Since GCHP™ contains glass components, it has a low Young's modulus. In such a substrate, stress is dispersed without being concentrated on a part. This characteristic is not found in ceramic substrates, and is effective in preventing cracks not only in the substrate but also in the peripheral parts of the mounted substrate.
Ultraviolet
light
resistance		 LiDAR systems are expected to be used outdoors and must have UV resistance. GCHP™, a composite of glass and ceramics, hardly deteriorates when exposed to ultraviolet irradiation.
Sulfur
resistance		 There is a stringent test called the sulfur resistance test to check the durability of package substrates. Package substrates must pass the test when they are assumed to be used for outdoor or automotive applications. GCHP™ does not deteriorate even under a sulfur-containing environment.

Downsizing as a result of the formation of three-dimensional circuit

GCHP™ substrates are fabricated in accordance with the LTCC process. A metal pattern, such as Ag, is formed on an unfired substrate called a green sheet, and the substrate is fired after being multilayered. This process make it possible to form inner layer wiring and produce a three-dimensional circuit. As a result, it becomes possible to downsize the package size and to flexibly design package substrates including surface-mounted ones.

LTCC package with surface-mounted devices.
Another chip can be mounted on separate wiring from that of the chip in the center to control the characteristics of devices mounted on the surface.

Performance, specifications and sizes of package substrates for semiconductor lasers

The features of GCHP™ are compared to those of other ceramic materials. Since Ag functions as a heat sink, GCHP™ has high heat releasing performance.
By making use of the characteristics of glass and ceramics as the materials used, it has high reliability.
Furthermore, GCHP™ allows more complicated inner layer wiring, which contributes to flexible and high-density designs.

Item GCHP™ Al2O3 AlN
Heat release Excellent

（heat sink）

 Average Excellent
Reflectance Excellent Good Poor
Reliability Excellent Average Excellent
Multi-layer structure Excellent Average Poor

Sample

Please use our contact form to request samples.

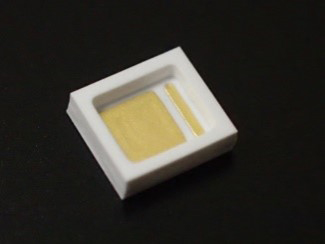

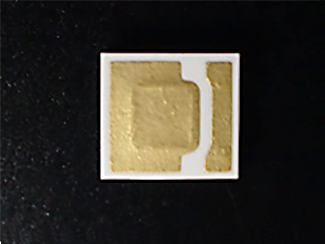

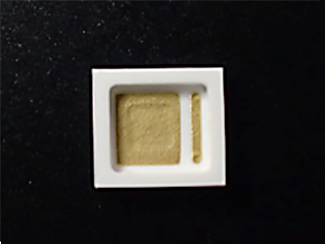

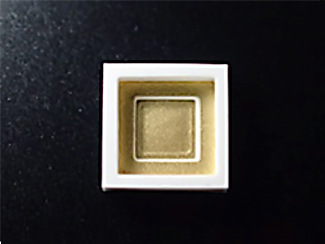

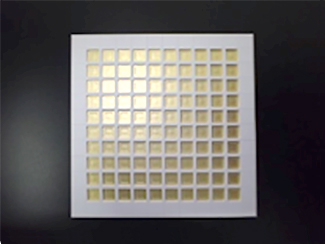

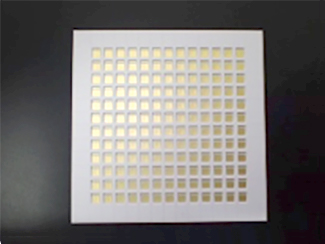

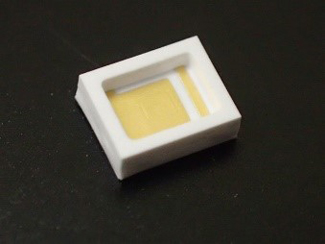

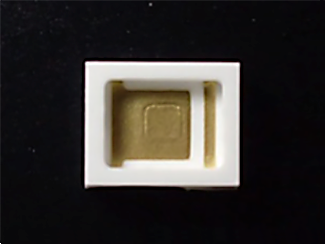

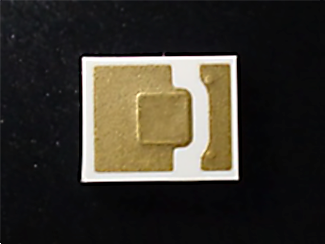

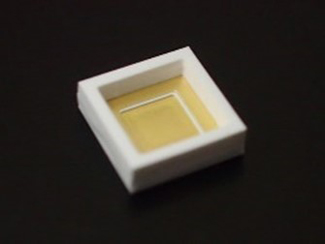

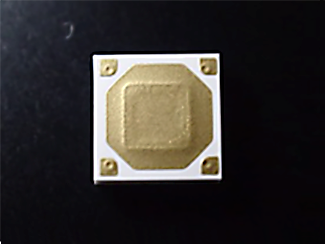

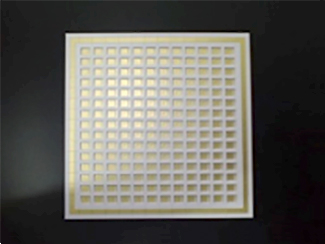

Unit design Top of unit Bottom of unit Array design
3528 size
（3.5㎜*2.8㎜）
3532 size
（3.5㎜*3.2㎜）
4343 size
（4.3㎜*4.3㎜）
