AGC has extensive experience in the development, prototyping, and mass production of transmission type diffraction gratings based on its proprietary optical design, microfabrication, coating, and mass production technologies. These enable it to propose the optimal solutions for customers.

Transmission type diffraction grating

A transmission type diffraction grating is an element used for diffracting light and other waves. It is made of transparent material with a microscopic periodic structure. When light enters the material, it is diffracted at an angle corresponding to the wavelength. This diffraction provides information about the wavelength of light, which is used for applications such as spectroscopy and optical interference.

Applications

  • Optical communications
    - WSS (wavelength selective switch)
    - Tunable Filter
  • LiDAR
  • Attenuator
  • Optical spectrum analyzers

etc.

AGC's transmission type diffraction grating

Features

  • High-efficiency design can be proposed based on customer requests
  • Design of ultra-fine pitch grating with a submicron level is also available
  • Design of low PDL (polarization dependent loss) / low WDL (wavelength dependent loss) is also available
  • Support of multi-step processing is also available
  • Support of Telcordia (GR-1221) is also available
  • Available in various dimensions on request (several mm to several tens of mm square)
  • Low coefficient of thermal expansion through the use of synthetic quartz glass

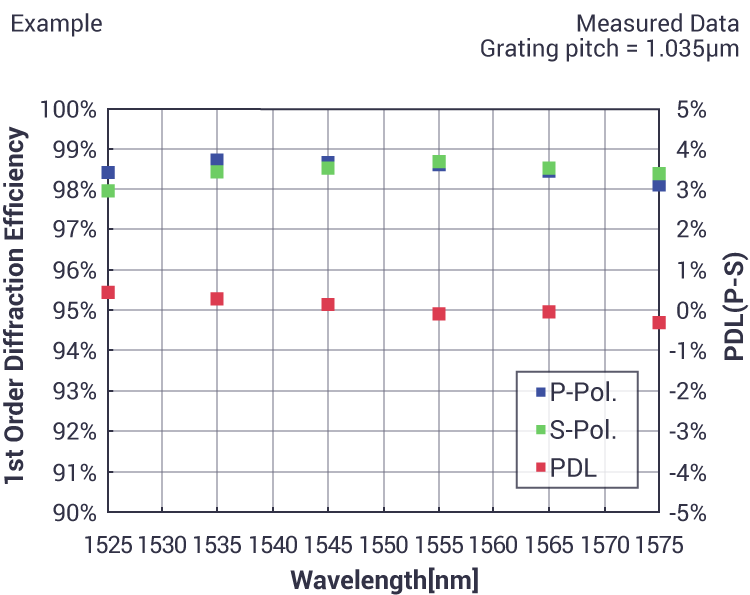

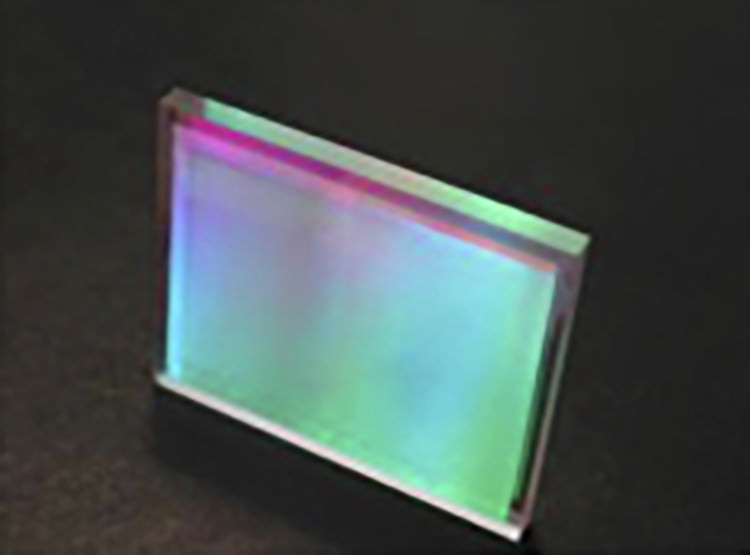

Product element image
