As the sophistication and miniaturization of electronic devices continues to advance, so does demand for faster semiconductor chip calculation speeds as well as higher capacities and more advanced integration. The circuit patterns of semiconductor chips must be further miniaturized in order to achieve these goals, yet with currently available optical lithography technology*1 it is theoretically unrealistic to model miniaturized patterns, referred to as "7nm node." EUV*2 optical technology is considered the most plausible technology to create such miniaturized patterns.
AGC began conducting R&D on photomask blanks utilized in EUV lithography technology in 2003. By combining its core technologies (i.e. glass materials, glass processing, and coatings), AGC is currently the only manufacturer in the world capable of handling every aspect of photomask blanks―from the glass material to film material. In anticipation of the expansion of EUV lithography, which is expected to become the prevailing technology, AGC has decided on a drastic expansion of the supply system for EUVL mask blanks at one of its group companies, AGC Electronics in 2018.
Under its AGC plus management policy, the AGC Group has made a commitment to positioning electronics related business as one of its strategic businesses. AGC intends to continue making aggressive capital investment in EUVL mask blanks, which are expected to see significant growth in demand in the coming years, to contribute to further development of the semiconductor industry.
1: Optical Lithography Technology: The process of transferring LSI circuit patterns to silicon wafers, etc., using a KrF (krypton fluoride) or ArF (argon fluoride) light source.

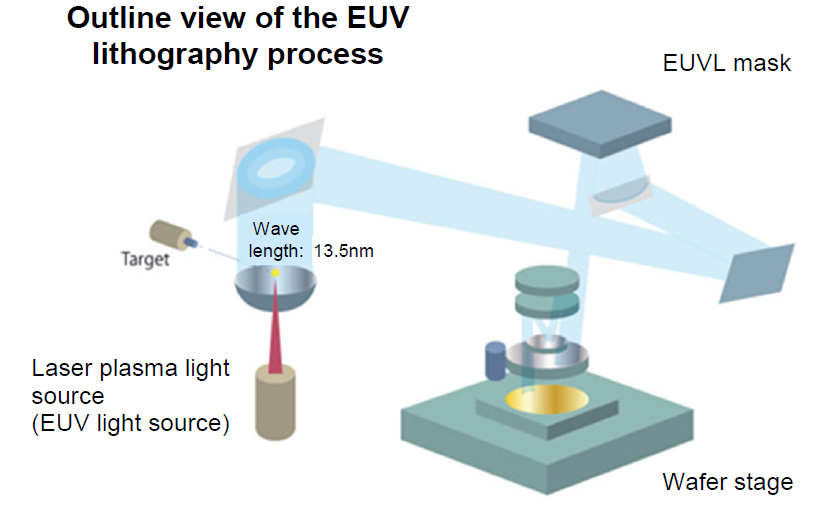

2: EUV: Extreme ultraviolet radiation with a wavelength of 13.5nm
About AGC Electronics
|AGC Electronics Co., Ltd.
|300 million yen
|Head office location
|Koriyama City, Fukushima Prefecture
|600 (as of end of December 2017)
|Semiconductor-related materials business;
optical device related business, etc.
About EUVL Mask Blanks

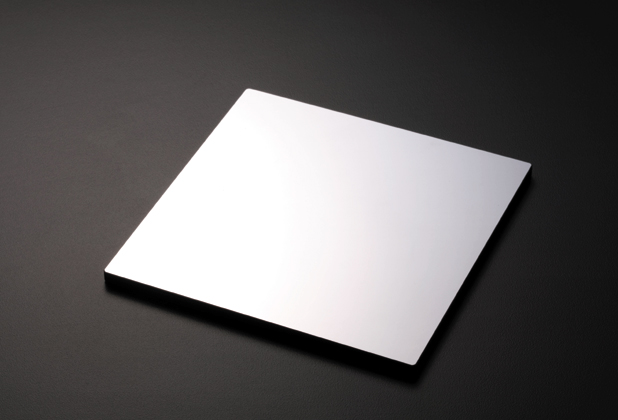

EUV lithography mask blanks ("EUV mask blanks") are the original plate of “photomask” laminated with multiple layers of film on a lower-expansion glass substrate. Due to the further miniaturization of circuits, EUV mask blanks are increasingly expected to:
・ Have as close to zero extremely-small-sized defects as possible;
・ Have extremely high flatness
