September 8, 2023Products

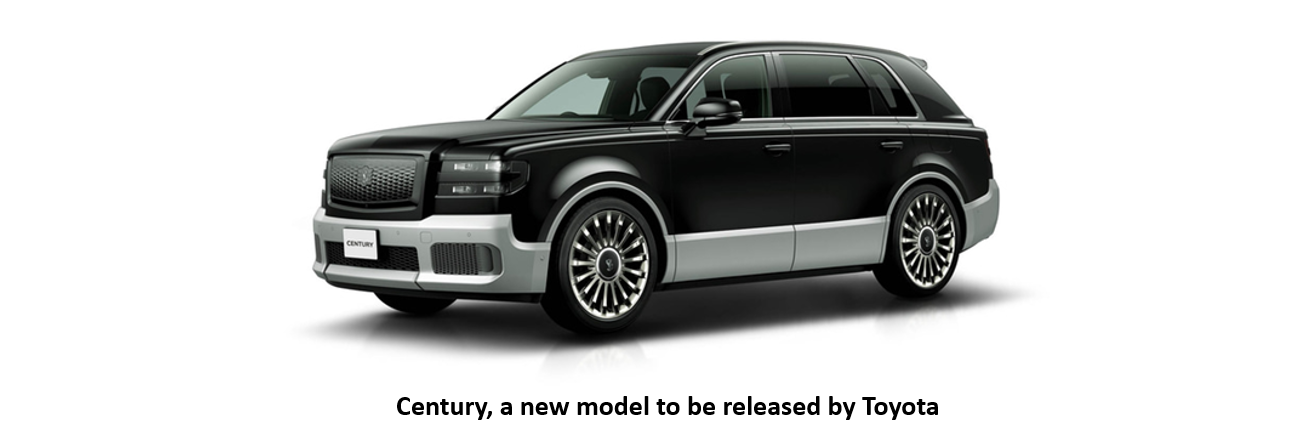

AGC’s Digital CurtainTM Light Control Glass Adopted for Toyota’s “Century”

AGC (Headquarters: Tokyo; President: Yoshinori Hirai), a world-leading manufacturer of glass, chemicals, and high-tech materials, has announced that its Digital Curtain*1 light control glass has been adopted for Toyota’s Century model, which will be launched in 2023. The adoption of Digital Curtain in the rear seats allows for instantaneous control of light transmission and visibility, thus contributing to a spacious and comfortable cabin interior. This is the first time in the world*2 for light control glass to be adopted for car door sections.

Digital Curtain is a light control glass that reduces the heat and glare of the sunlight and ensures privacy in the dimmed mode (opaque state), while delivering a sense of openness in the transmissive mode (clear state). Until now, light control glass has been used as fixed windows, such as panoramic roofs. The new Digital Curtain has achieved not only chemical durability to withstand long-term exposure to wind, rain and sunlight, but also mechanical durability for opening, closing, raising and lowering. Additionally, the black ceramic design around the window glass was made as thin and neat as possible, which was highly evaluated as a door design befitting the prestige of the Century and led to the world’s first use of light control glass in the rear door section.

The Digital Curtain eliminates the need for shades and provides a larger, more advanced and comfortable rear seating space, as well as increased privacy.

As the functions required of automotive glass become more sophisticated and diverse, the AGC Group will contribute to the realization of a new mobility society by providing optimal materials and solutions.

*1 The AGC Group product line of light control glass products for automotive applications.

*2 Based on AGC research. This is the first time in the world that light control glass with laminated glass specification is used in door sections.

■ Overview of Digital Curtain light control glass

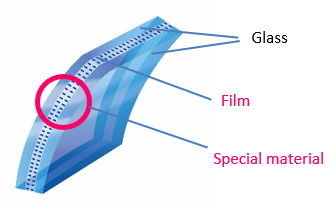

Digital Curtain light control glass consists of laminated glass with a special film sandwiched between two sheets of glass, which contains a special material so small that it is invisible to the eye.

Reduces UV rays by approximately 99%*3 in both dimmed and transmissive modes.

*3 ISO9050 standard

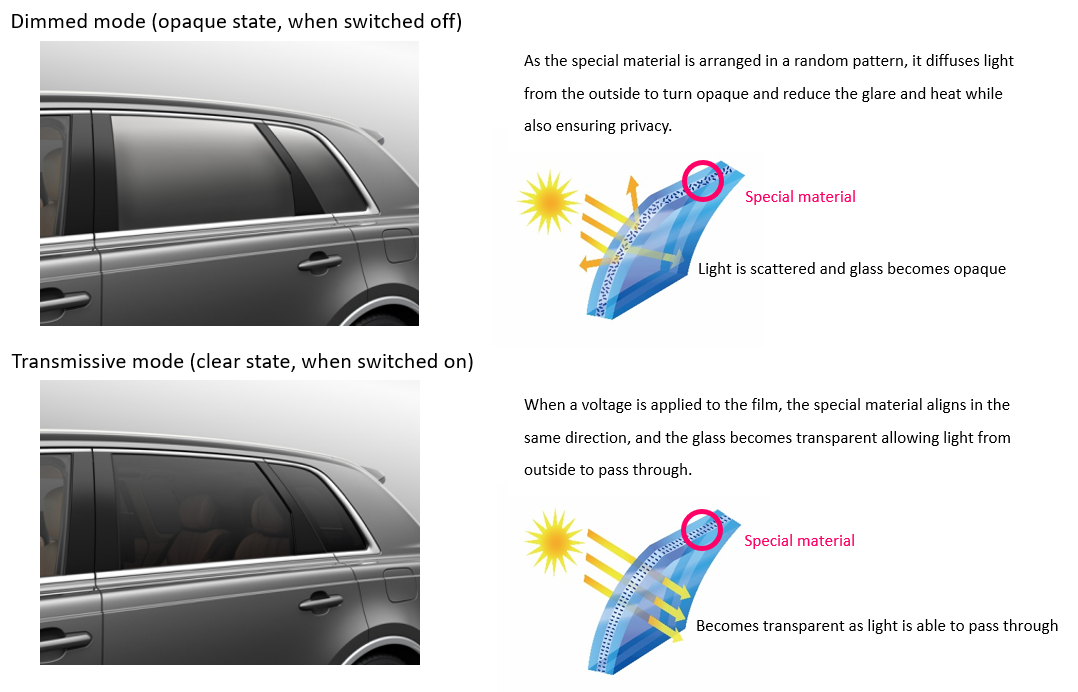

Voltage is used to control the distribution and orientation of the special material in the film encapsulated between layers of interlayer in laminated glass, enabling instantaneous switching between the dimmed and transmissive mode.
